LIMAline 60New
Category
Linear actuators for active facades
Features
Facade architecture
26
60
16
28
20
Description

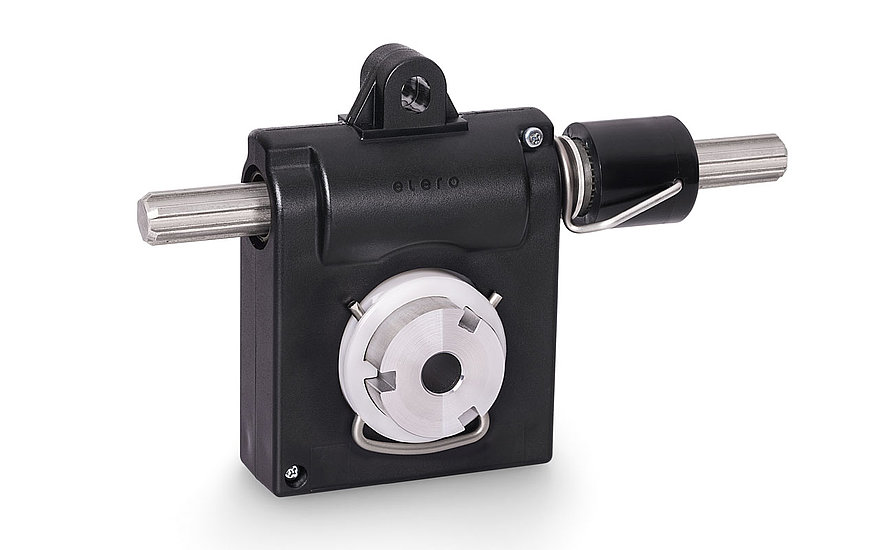

The LIMAline technology is used to move facade elements like sun protection louvers made of aluminium, glass, stainless steel and photovoltaic elements precise. The drive solution which consists of gearbox, drive and accessories is invisble for observers because it's hidden in the mullions. The LIMAline 60 has a plastic housing and enables a 360° rotation of the louvers. It's static peak load is 60 Nm. A further advantage of the LIMAline 60 is the flexibility in munting. The louvers don't have to be in a sychrone position while mounting the LIMAline 60 because they can be adjusted afterwards.
Accessories:
- Profile shaft
- Profile bushing
- Conversion gear box
- Angle gear box
- Adapter
- Adjustment key
- JA-drives
Product advantages:
- Drive system for symmetrical louvers
- Integration into façade mullions
- Rotation 360°
- It is possible to fine- or re-adjust the blades individually via the integrated driver
- Maintenace- and corrosion-free
Technical data
-
LIMAline 60, 150, 300, 800
Brochure
Category: Active facadesBrochure with description and technical data for the linear drive systems LIMAline 60, LIMAline 150, LIMAline 300 and LIMAline 800 from elero
Download language: EnglishDownload -
LIMAline 60
Operating instruction
Category: Active facadesOperating instruction for the drive system LIMAline 60 from elero
Download language: EnglishDownload
-
Individual solutions
elero offers linear actuator solutions for your individual requirements
Tell us your special needs - and we will promptly offer the ideal solution, with the minimum of fuss and short delivery times. You will be surprised of how quick we are and how easily we do find solutions for your special requests.
